12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

Large Image : 12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

Product Details:

Place of Origin:	Heibei province China
Brand Name:	JSBIT
Certification:	API and ISO standard
Model Number:	12 1/4inch 12inch 311mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	bargain
Packaging Details:	Fumigation-free export wooden box
Delivery Time:	1 days
Payment Terms:	Western Union, T/T
Supply Ability:	500PCS /month

Contact Now

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

Description

Application:	Coal Mining, Quarry Drilling, Drilling	Product Process:	Forging And Heat Treatment
Material:	20GrNiMo And Tungsten Carbide	Warranty:	More Than 80 Hours
Standard:	API And ISO	Usage:	HDD Drilling, Oil Drilling, Crossing Strata, Water Well Drilling.
Machinable Size:	12 1/4inch12inch	IADC:	217
Highlight:	IADC217 Tricone Bit , Water Well Drilling Tricone Bit , 12 1/4inch Tricone Bit

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

JSBIT tricone bits factory offers all kinds of tricone drill bits. Tricone bits are available in new and used tricone bits , steel tooth and tungsten carbide insert, in sizes from 37/8" to 36", for use in all formations, with any bearing: seal type / air type , tricone bits apply to oil gas geothermy mining water HDD and foundation industry.

IADC	Recommended parameters		Applicable strata
IADC	WOB KN/mm	Rotating speed r/min	Applicable strata
116,117	0.35-0.8	150-80	Extremely soft formations with high compressive strength and drillability, such as clay, mudstone, chalk
126,127	0.35-0.9	150-70	Soft formations with high compressive strength and drillability, such as mudstone, gypsum, salt rock, soft shale, soft limestone
136,137	0.35-1.0	120-60	Soft to medium-soft formations with high compressive strength and high drillability, such as medium-soft shale, anhydrite, medium-soft limestone, medium-soft sandstone and soft formations with hard interlayers
216,217	0.4-1.0	100-60	Soft to medium formations with compressive strength, such as soft shale, medium soft limestone, medium soft sandstone and soft formations with hard interlayers
246,247	0.4-1.0	80-50	Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite
417,437,447	0.35-0.9	150-70	Very soft formations with high compressive strength and drillability, such as clay, mudstone, chalk, gypsum, salt rock, soft shale, soft limestone
517,527	0.35-1.0	140-60	Soft formations with high compressive strength, such as mudstone, gypsum, salt rock, soft shale, soft limestone
537,547	0.45-1.0	120-50	Soft to medium formations with compressive strength, such as medium-soft shale, medium-soft limestone, medium-soft sandstone and medium formations with effective hard abrasive interlayers
617,627	0.45-1.1	90-50	Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite
637	0.5-1.2	80-40	Hard formations with high compressive strength, such as sandstone, limestone, dolomite and anhydrite, marble

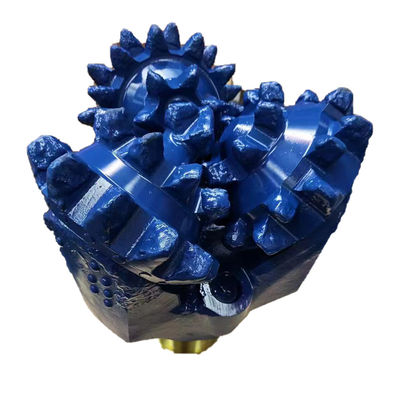

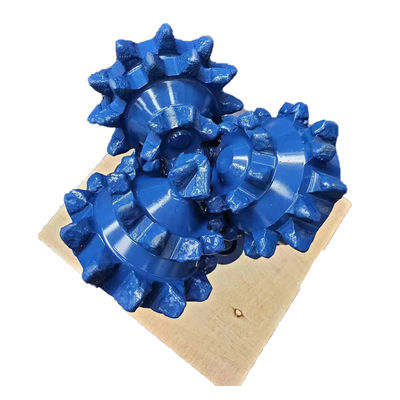

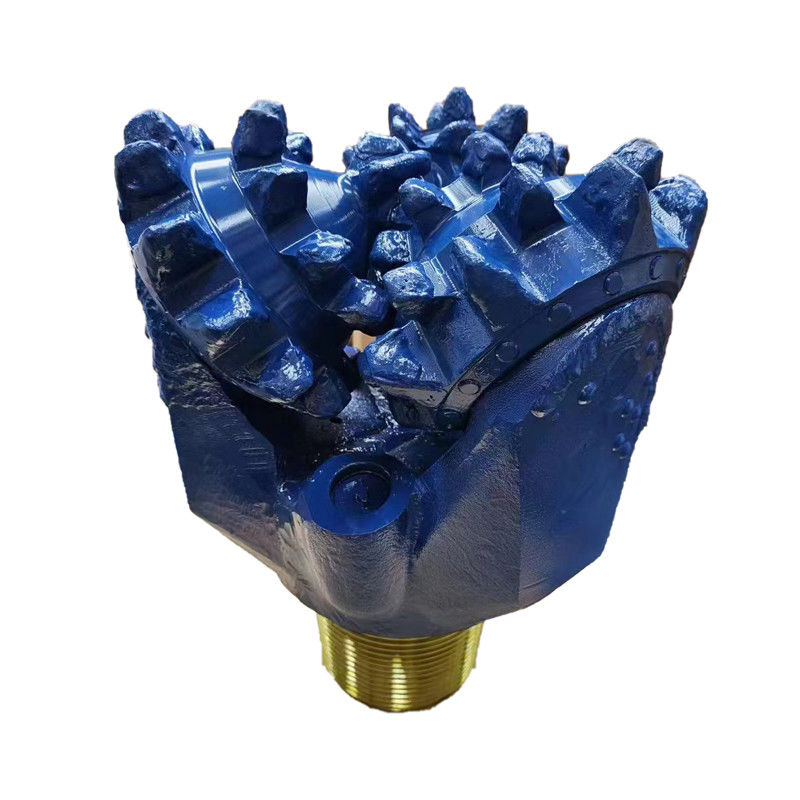

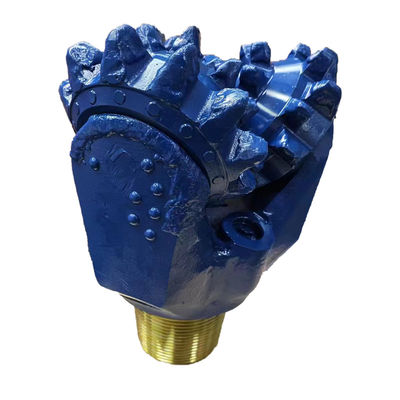

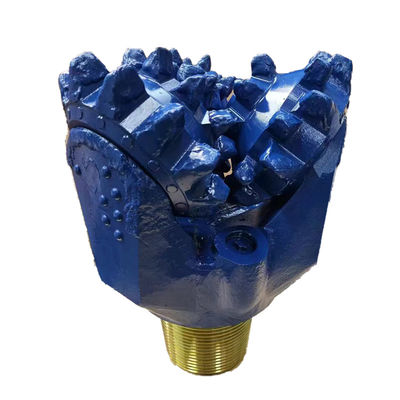

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling 0

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling 3

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling 4

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling 7
