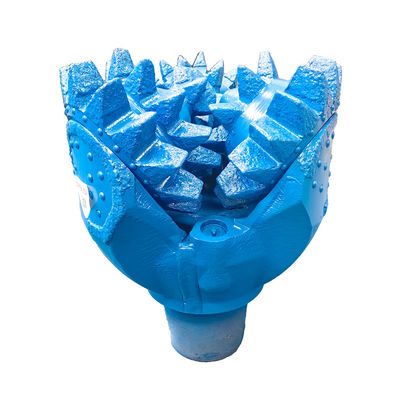

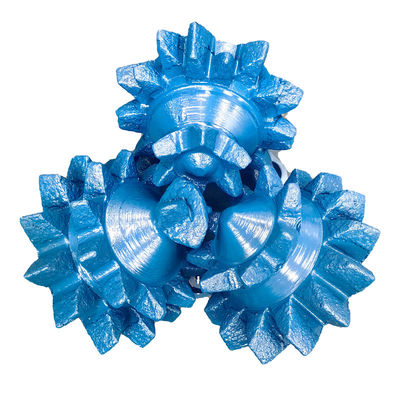

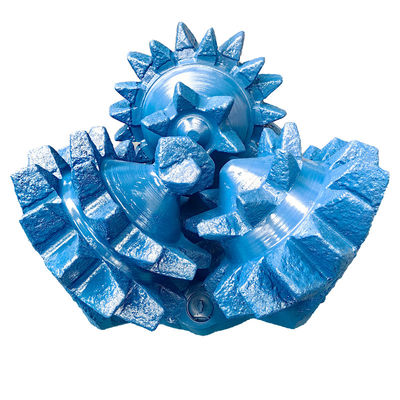

17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling

17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling
17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling

Large Image :  17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling

Product Details:
Place of Origin: Heibei province China
Brand Name: JSBIT
Certification: API and ISO standard
Model Number: 17 1/2inch
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: bargain
Packaging Details: Fumigation-free export wooden box
Delivery Time: 1 days
Payment Terms: Western Union, T/T
Supply Ability: 500PCS /month
Contact Now

17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling

Description
Application: Coal Mining, Quarry Drilling, Drilling Product Process: Forging And Heat Treatment
Material: 20GrNiMo And Tungsten Carbide Warranty: More Than 80 Hours
Standard: API And ISO Usage: HDD Drilling, Oil Drilling, Crossing Strata, Water Well Drilling.
Machinable Size: 17 1/2inch 444.5mm IADC: 127
Highlight:

IADC127 Mill Teeth Tricone Bit

,

17 1/2 Inch Mill Teeth Tricone Bit

,

444.5mm Mill Teeth Tricone Bit

17 1/2inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling

JSBIT tricone bits factory offers all kinds of tricone drill bits. Tricone bits are available in new and used tricone bits , steel tooth and tungsten carbide insert, in sizes from 37/8" to 36", for use in all formations, with any bearing: seal type / air type , tricone bits apply to oil gas geothermy mining water HDD and foundation industry.



IADC Recommended parameters Applicable strata
WOB KN/mm Rotating speed r/min
116,117 0.35-0.8 150-80 Extremely soft formations with high compressive strength and drillability, such as clay, mudstone, chalk
126,127 0.35-0.9 150-70 Soft formations with high compressive strength and drillability, such as mudstone, gypsum, salt rock, soft shale, soft limestone
136,137 0.35-1.0 120-60 Soft to medium-soft formations with high compressive strength and high drillability, such as medium-soft shale, anhydrite, medium-soft limestone, medium-soft sandstone and soft formations with hard interlayers
216,217 0.4-1.0 100-60 Soft to medium formations with compressive strength, such as soft shale, medium soft limestone, medium soft sandstone and soft formations with hard interlayers
246,247 0.4-1.0 80-50 Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite
417,437,447 0.35-0.9 150-70 Very soft formations with high compressive strength and drillability, such as clay, mudstone, chalk, gypsum, salt rock, soft shale, soft limestone
517,527 0.35-1.0 140-60 Soft formations with high compressive strength, such as mudstone, gypsum, salt rock, soft shale, soft limestone
537,547 0.45-1.0 120-50 Soft to medium formations with compressive strength, such as medium-soft shale, medium-soft limestone, medium-soft sandstone and medium formations with effective hard abrasive interlayers
617,627 0.45-1.1 90-50 Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite
637 0.5-1.2 80-40 Hard formations with high compressive strength, such as sandstone, limestone, dolomite and anhydrite, marble







17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 017 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 117 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 2







17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 3

17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 417 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 517 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 6

17 1/2 Inch 444.5mm IADC127 Mill Teeth Tricone Bit For Water Well Drilling 7
