14 Inch Steel HDD Rock Reamer For Construction Engineering

Certification
China Cang Zhou Creator Drill Equipment Scinence And Technology Co.,LTD certification
China Cang Zhou Creator Drill Equipment Scinence And Technology Co.,LTD certification
I'm Online Chat Now

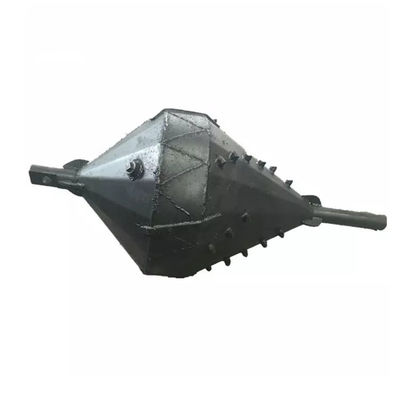

14 Inch Steel HDD Rock Reamer For Construction Engineering

14 Inch Steel HDD Rock Reamer For Construction Engineering
14 Inch Steel HDD Rock Reamer For Construction Engineering 14 Inch Steel HDD Rock Reamer For Construction Engineering

Large Image :  14 Inch Steel HDD Rock Reamer For Construction Engineering

Product Details:
Place of Origin: Hebei, China
Brand Name: JianShi
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: bargain
Packaging Details: Can be customized + carton
Delivery Time: 15 days -30 days.
Supply Ability: The construction period of a HHD reamer is 5-7 days

14 Inch Steel HDD Rock Reamer For Construction Engineering

Description
Product Name: HDD Rock Reamer Origin: Hebei, China
Applicable Industry: Construction Engineering, Energy And Mining, Infrastructure Construction Type: Reamer
Type Of Machine: Drilling Tools Material: Steel
Type Of Processing: The Casting Use: Infrastructure Construction
Highlight:

14 Inch HDD Rock Reamer

,

Steel HDD Rock Reamer

,

Construction Engineering rock reamer hdd

Quality Chinese Factory 14 Inch HDD Rock Drill Reamer




Product Description



Adopt more suitable tooth type, bearing structure, sealing method and claw Angle. Water cutting, good sand back, can effectively reduce sand accumulation, cone made of hot coating anti-wear alloy, reduce wear. Unique cone fall prevention design, prevent cone fall accident caused by bearing damage.



Reamer Size
20"
24"
30"
Total length
1200mm
1200mm
1200mm
Cutter Size&Type
8 1/2 IADC637
8 1/2" IADC637
12 1/4" IADC637
Stabilizer Size
16"
18"
20"
Thread Connection
4 1/2" IF box&pulling eye
5 1/2"FH pin&box
5 1/2"REG pin&box
Recommend make up torque(KN.M)
46.1-54.2
46.1-54.2
62.4-70.6
Product Advantage



1. Journal bearing. Hard face head bearing surface. The taper bearing is inlaid with antifriction alloy and then silver plated. The bearing capacity and bite resistance of bearings are greatly improved.

2, the O-ring is made of high-saturation nitrile rubber with higher wear resistance, which increases the sealing section. The sealing flange in the conical sealing area is precisely designed, which increases the reliability of sealing.

3. Bit bearing can be ball lock or ring lock. The bit with ring lock bearing can withstand higher bit weight and carry the ball

The lock bearing bit can be used for high-speed drilling.

4. The full rubber compensator can limit the pressure difference and prevent drilling fluid from entering the lubricating oil system, which provides a good lubrication guarantee for the bearing system.

14 Inch Steel HDD Rock Reamer For Construction Engineering 0

About Us



14 Inch Steel HDD Rock Reamer For Construction Engineering 1



The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.



We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.



With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!





Usage Scenarios



14 Inch Steel HDD Rock Reamer For Construction Engineering 2


Production Process



14 Inch Steel HDD Rock Reamer For Construction Engineering 3
Transport



14 Inch Steel HDD Rock Reamer For Construction Engineering 4

F&Q


1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.



2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;



3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment



4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
