12 1/2 Rotary Triangle Drill Bit 36" For Horizontal Directional Drilling Openers

Name: 12 1/2 Rotary Triangle Drill Bit 36" For Horizontal Directional Drilling Openers
Brand: Cang Zhou Creator Drill Equipment Scinence And Technology Co.,LTD
Availability: InStock

All Products

Tci Tricone Bit
(321)

Tricone Rock Bit
(13)

PDC Bits
(53)

Tricone Roller Bits
(51)

Steel Tooth Tricone Bit
(28)

HDD Pilot Bit
(6)

HDD Hole Opener
(12)

HDD Rock Reamer
(57)

Drilling Mud Motor
(8)

Center Hole Tricone Bit
(8)

Crossover subs
(23)

Certification

I'm Online Chat Now

12 1/2 Rotary Triangle Drill Bit 36" For Horizontal Directional Drilling Openers

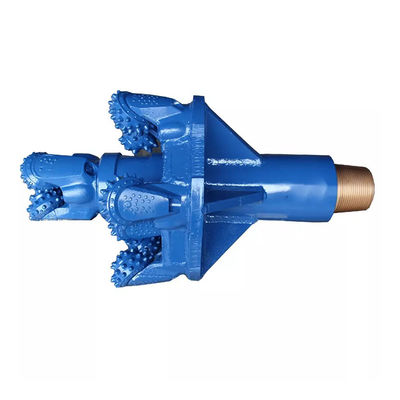

Large Image : 12 1/2 Rotary Triangle Drill Bit 36" For Horizontal Directional Drilling Openers

Product Details:

Place of Origin:	Hebei, China
Brand Name:	JianShi

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	bargain
Packaging Details:	Can be customized + carton
Delivery Time:	15 days -30 days.
Supply Ability:	The construction period of a HHD reamer is 5-7 days

Contact Now

12 1/2 Rotary Triangle Drill Bit 36" For Horizontal Directional Drilling Openers

Description

Product Name:	Center Hole Tricone Bit	Origin:	Hebei, China
Brand Name:	JS	Applicable Industry:	Energy And Mining
Material:	Carbide	Use:	Drilling
Color:	The Customer Request	Size:	15 "to 20" '
Highlight:	12 1/2 Triangle Drill Bit , Triangle Drill Bit 36 " , Horizontal Drilling Triangle Drill Bit

12 1/2 Rotary Drill Guide Triangle Bit, 36 "For Openers

Product Description

Directional drilling, often referred to as horizontal directional drilling or HDD, is a steerable trenchless method of installing underground pipes, conduits, and cables in shallow arcs along a prescribed drilling path with minimal impact on the surrounding area by using a ground-launched drill. Directional drilling is used when ditching or digging is not practical. It is suitable for a variety of soil conditions and operations, including roads, landscapes and river crossings.

Size of tricone bit	15''-20'' 400mm-500mm
Thread Connection	7 5/8"API reg pin
IADC CODE	517 537
Bearing type	rubber o-ring sealed journal bearing
Operating Parameters
WOB (Weight On Bit)	0.35~1.05 KN/mm (bit Dia.)
Rotary speed	150~60 r/min
Make up torque	46.1~54.2 KN.M
Formation	Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.

Product Advantage

1. The opening device has the advantages of good tooth position distribution, good wear resistance, large cutting area and high efficiency.

2. The hole opener adopts internal and external anti-drip device to reduce the occurrence of tool falling accidents in harsh drilling environment.

3. Roller bearings and larger cross section are used for cutting tools and rubber seals to improve the service life of the hole opener.

4. The directional sheet guides and supports the body, and the surface adopts wear-resistant alloy to improve the wear resistance and impact resistance.

About Us

12 1/2 Rotary Triangle Drill Bit 36" For Horizontal Directional Drilling Openers 1

The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.

We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.

With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!

Usage Scenarios

Production Process

Transport

F&Q

1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.

2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;

3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment

4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
