API 7-1 PDM Positive Displacement Mud Motor For Oil Well Drilling

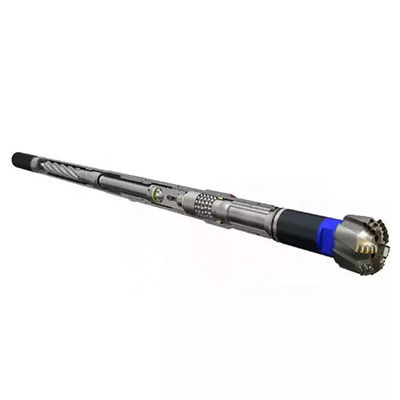

Large Image : API 7-1 PDM Positive Displacement Mud Motor For Oil Well Drilling

Product Details:

Place of Origin:	Hebei, China
Brand Name:	JianShi

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	bargain
Packaging Details:	Can be customized + carton
Delivery Time:	15 days -30 days.
Supply Ability:	The construction period of a HHD reamer is 5-7 days

Contact Now

API 7-1 PDM Positive Displacement Mud Motor For Oil Well Drilling

Description

Product Name:	Drilling Mud Motor	Origin:	Hebei, China
Brand Name:	JS	Applicable Industry:	Energy And Mining
Mechanical Test Report:	Provide	Type:	Downhole Motor
Type Of Machine:	Drilling Tools	Material:	Alloy Steel
Certification:	API	Application:	Downhole Power Drilling Tools Driven By Drilling Mud Power
Highlight:	PDM Positive Displacement Mud Motor , API 7-1 Positive Displacement Mud Motor , Well Drilling Positive Displacement Mud Motor

API 7-1 PDM Downhole Mud Motor For Drilling Downhole Oil Well Motor

Product Description

1. Downhole drilling rig is a mud driven downhole drilling tool.

2, mud pump slurry through the bypass valve into the motor, the motor inlet and outlet to form a certain pressure difference, promote the rotation of the rotor. Torque and speed are transmitted to the bit through the cardan and drive shafts.

3. The performance of the drilling machine motor mainly depends on the performance parameters of the screw motor.

4. This product adopts high-tech coating technology to avoid rotor coating falling off. Traditional technology. Its strength and longevity are greatly improved.

5. It is suitable for directional drilling, horizontal drilling, compound drilling, cluster drilling, side drilling and well workover, etc

Product	K7LZ95*7.0	K7LZ120*7.0	K7LZ165*7.0	K7LZ172*7.0	K7LZ197*7.0	K7LZ244*7.0
External diameter(inch)	3 3/4	4 3/4	6 1/2	6 3/4	7 3/4	9 5/8
External diameter(mm)	95	120	165	172	197	244
Flow rate(GPM)	510	1020	1938	2238.5	33.556.7	4270
Bit Speed(r/min)	60130	50100	4692	50100	5080	4070
Pressure drop(psi)	2	1.8	2.4	2.4	2.4	2.4
Totalvolume(L)	1000	2770	5750	6000	11000	15000
Max.Torque(ft.ibs)	1600	4430	9200	9600	17600	24000
WOB(ibs)	30	55	90	150	200	210
Max.WOB(ibs)	60	100	180	300	380	400
Max.Power (kW)	13.61	29	73	62.8	92.2	110
Motor power(kW)	5.8	6.2	7.6	6.7	6.9	7.8
Electrical(L/min)	2 7/8	3 1/2	4 1/2	4 1/2	5 1/2	6 5/8
Pneumatic(ml/stroke)	2 7/8	3 1/2	4 1/2	4 1/2	6 5/8	6 5/8

Product Advantage

1. Increase penetration.

2. Better hole deviation control.

3. Reduce the drill string failure rate.

4. Reduce wear on rotary, Kelly, and rotary drives.

5. Reduced fuel costs because less energy is required to drive downhole motors compared to rotary drilling.

About Us

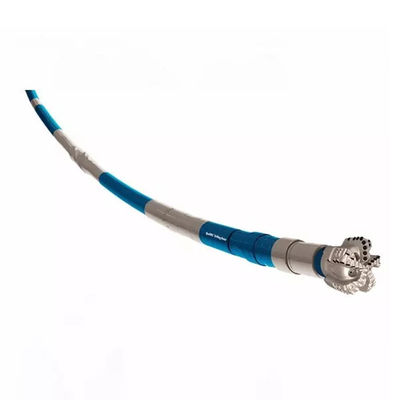

API 7-1 PDM Positive Displacement Mud Motor For Oil Well Drilling 1

The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.

We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.

With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!

Usage Scenarios

Production Process

Transport

F&Q

1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.

2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;

3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment

4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
