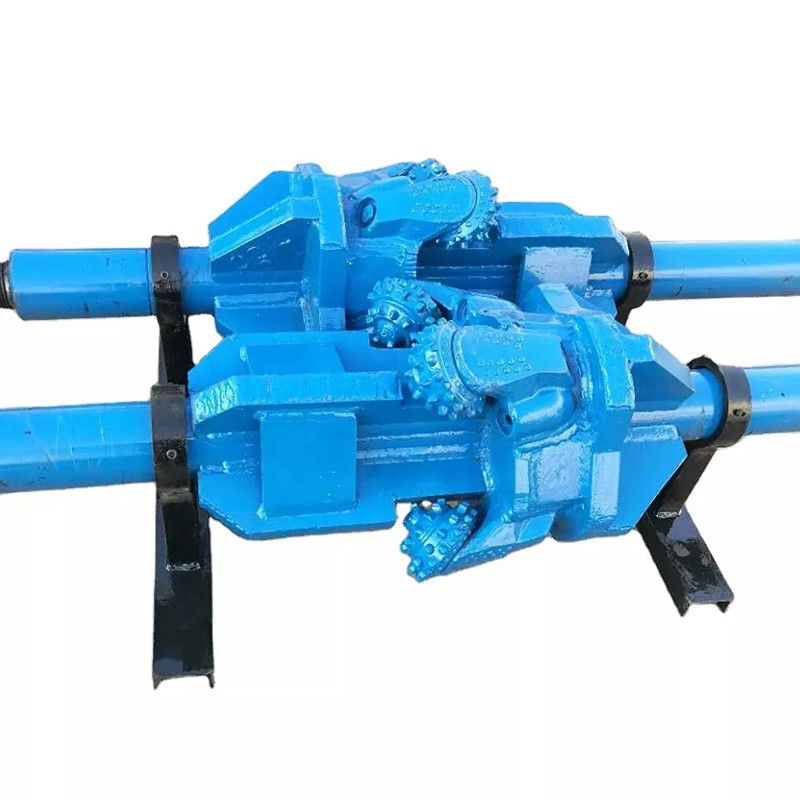

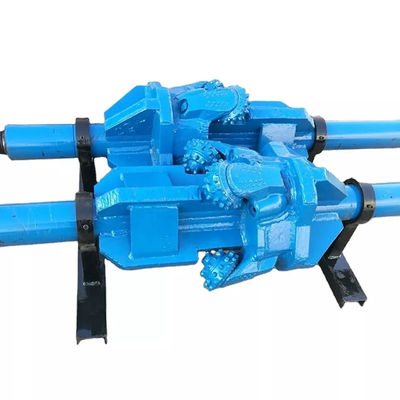

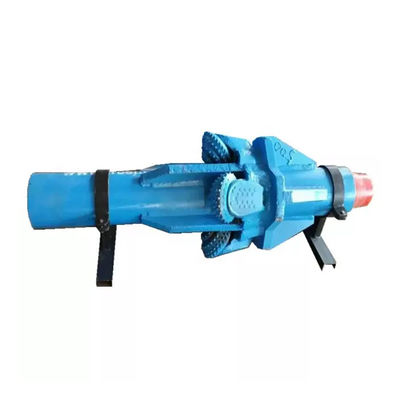

Soft Formation HDD Rock Reamer Opener For Trenchless API Certification

Soft Formation HDD Rock Reamer Opener For Trenchless API Certification
Soft Formation HDD Rock Reamer Opener For Trenchless API Certification Soft Formation HDD Rock Reamer Opener For Trenchless API Certification

Large Image :  Soft Formation HDD Rock Reamer Opener For Trenchless API Certification

Product Details:
Place of Origin: Hebei, China
Brand Name: JianShi
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: bargain
Packaging Details: Can be customized + carton
Delivery Time: 15 days -30 days.
Supply Ability: The construction period of a HHD reamer is 5-7 days
Contact Now

Soft Formation HDD Rock Reamer Opener For Trenchless API Certification

Description
Product Name: HDD Hole Opener Origin: Hebei, China
Brand Name: JS Applicable Industry: Energy And Mining, Drilling
Type Of Machine: Drilling Equipment Material: Carbide
Type Of Processing: Forging Certification: API
Teeth: Insert Button Or Milled Tooth Form: Soft To Hard Strata
Highlight:

Soft Formation HDD Rock Reamer

,

HDD Rock Reamer API

,

HDD Rock Reamer Trenchless

HDD Bit Opener/HDD Rock Reamer Bit For Trenchless



Product Description



At some point, it may be necessary to increase the size of the pre-bore to a larger diameter or to drill a larger diameter hole. Reamer drills are designed for this purpose. Reamer bits are custom manufactured in a variety of styles to meet field requirements. Custom reamer bits are an effective way to enlarge holes.



IADC
Rock formation
WOB (KN/mm)
PRM(r/min)

415/425/435
Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc

0.35~0.90

140~70

447
 Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc.

0.35~1.00

140~60

517
Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc

0.35~1.05

120~50

527
Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc.

0.35~1.05

120~50

537/547
 Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc.

0.50~1.05

110~40


617/627

 High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc.

0.50~1.05

80~40

637/647
 High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc.

0.7~1.20

70~40
Product Advantage



1. Unique design parameters and a wider blade top extend rock break and increase bottom hole coverage. At the same time, the shear sliding distance of the bottom hole blade is increased, and the ROP of the hard and plastic formation bit is increased.

2. The convex wedge has the characteristics of strong effective cutting ability and fracture resistance, which can effectively increase ROP and improve the service life of the bit. It is suitable for the following strata with moderate soft to moderate hardness.

3. The main tool of the drill is conical spherical pressure block, which is suitable for drilling in hard and brittle strata.

Soft Formation HDD Rock Reamer Opener For Trenchless API Certification 0

About Us



Soft Formation HDD Rock Reamer Opener For Trenchless API Certification 1



The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.



We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.

Usage Scenarios



Soft Formation HDD Rock Reamer Opener For Trenchless API Certification 2


Production Process



Soft Formation HDD Rock Reamer Opener For Trenchless API Certification 3
Transport



Soft Formation HDD Rock Reamer Opener For Trenchless API Certification 4

F&Q


1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.



2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;



3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment



4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.



Tag:

24" HDD Rock Reamer,

Well Drilling hdd hole openers,

HDD Hole Opener Low Compressive
