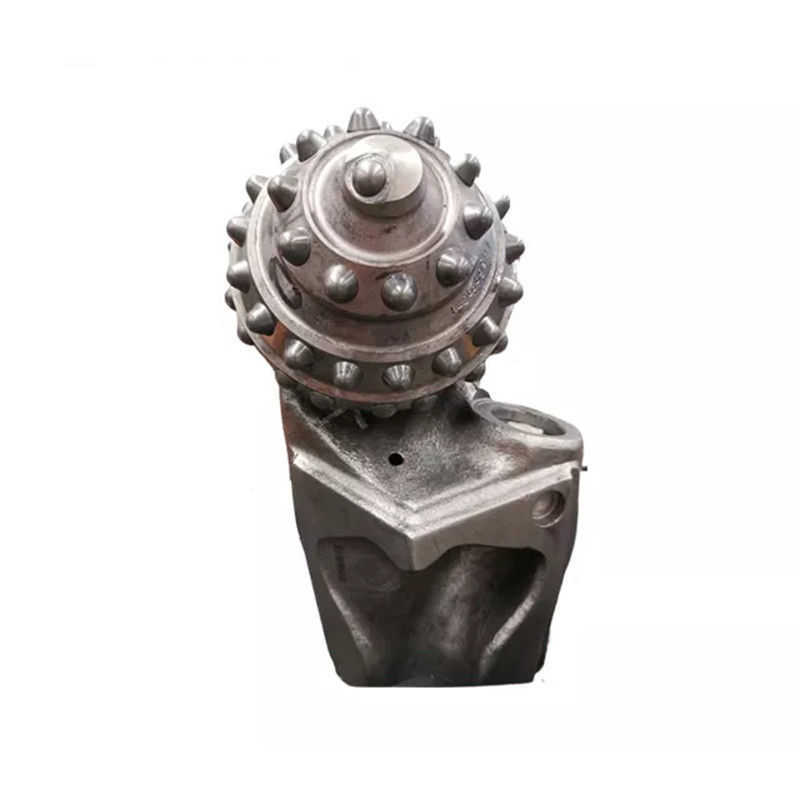

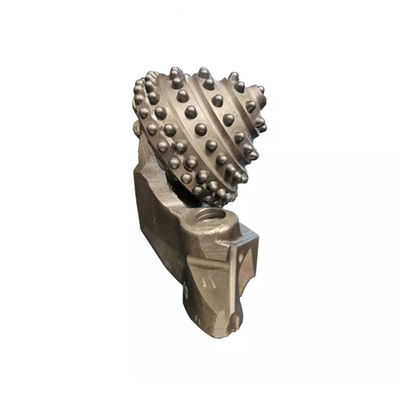

High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer

High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer
High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer

Large Image :  High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer

Product Details:
Place of Origin: Hebei, China
Brand Name: JianShi
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: bargain
Packaging Details: Can be customized + carton
Delivery Time: 15 days -30 days.
Supply Ability: The construction period of a HHD reamer is 5-7 days
Contact Now

High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer

Description
Product Name: HDD Pilot Bit Origin: Hebei, China
Brand Name: JS Type: Bit
Material: High Manganese Steel Type Of Processing: Forging
Use: Drilling Type Of Bearing: Journal Bearings And Seal Bearings
Highlight:

High Manganese Steel HDD Pilot Bit

,

HDD Pilot Bit Trenchless

,

Trenchless HDD Rock Reamer

Trenchless rock reamer bits for HDD mining drill horizontal directional holes



Product Description



The TCI random three-stage bit is equipped with a specially designed hob cutting structure that provides excellent performance. Their clever teeth ensure that cuttings of the right size are easily removed and transported for rapid drilling. The random cutting structure reduces vibration, increases drilling speed, and removes more rock per turn. The TCI random three-stage bit is equipped with a specially designed hob cutting structure that provides excellent performance. Their clever teeth ensure that cuttings of the right size are easily removed and transported for rapid drilling. The random cutting structure reduces vibration, increases drilling speed, and removes more rock per turn.



IADC
WOB(kN/mm)
RPM (r/min)
Suitable formation
437
0.35~0.95
140~60
Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
517
0.35~1.05
120~50
Soft with low compressive strength and high drillability,such as shale,clay,sandstone and soft limestone,etc.
537
0.35~1.05
110~40
Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone
and dolomite with stringers,etc.
637
0.70~1.20
70~40
Medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite, sandstone and chert.ect.
Note:The upper limits of WOB and RPM in above table should not be used simultaneously.
Product Advantage



1. Higher drilling speed, lighter load and smaller chip size make drilling easier to clean.

2. More durable cutting structure and bit integrity.

3. Higher quality leads to higher performance.

4. Allow deeper drilling without damaging seals while extending bearing life as much as possible.

5. Excellent bit body protection to withstand harsh horizontal drilling conditions.

6. Longer bearing life.

High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer 0
High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer 1

About Us



High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer 2High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer 3



The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.



We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.



With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!





Usage Scenarios



High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer 4


Production Process



High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer 5
Transport



High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer 6

F&Q


1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.



2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;



3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment



4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.



Tag:

Deep Water Drilling Tricone Roller Bits,

3 7/8" Petroleum Drill Bit,

IADC 447 Tricone Roller Bits
