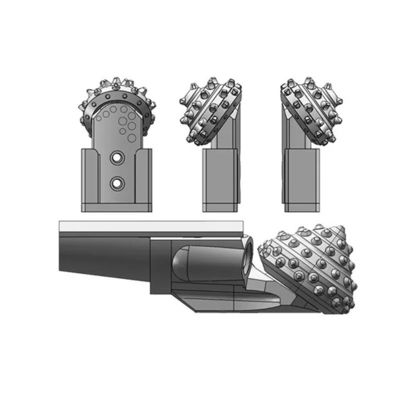

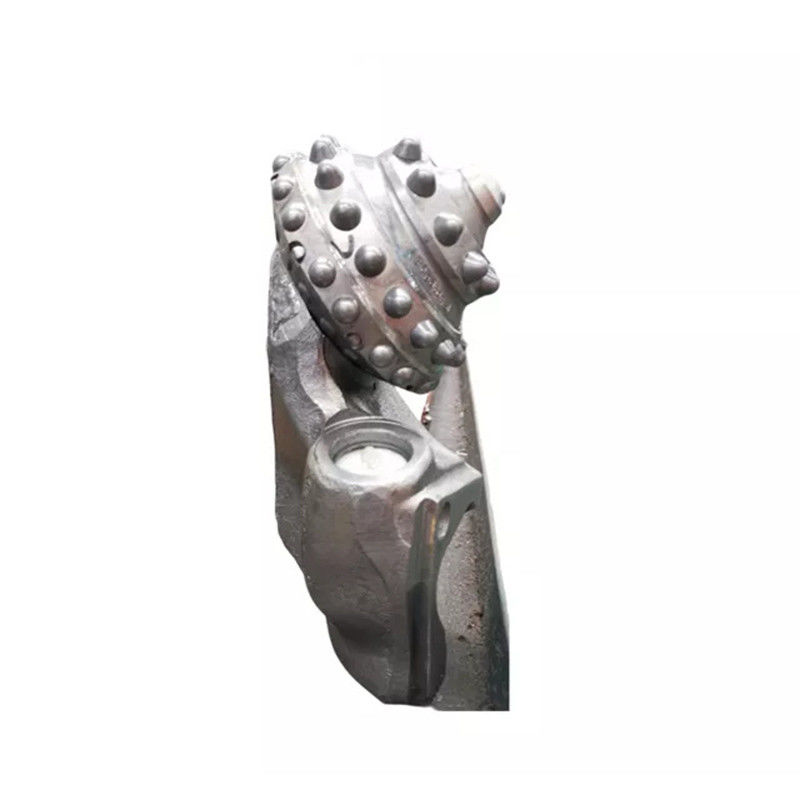

Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools

Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools
Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools

Large Image :  Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools

Product Details:
Place of Origin: Hebei, China
Brand Name: JianShi
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: bargain
Packaging Details: Can be customized + carton
Delivery Time: 15 days -30 days.
Supply Ability: The construction period of a HHD reamer is 5-7 days
Contact Now

Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools

Description
Product Name: HDD Pilot Bit Origin: Hebei, China
Brand Name: JS Type: Bit
Type Of Machine: Drilling Tools Material: High Manganese Steel
Type Of Processing: Forging Use: Drilling
Type Of Bearing: Journal Bearings And Seal Bearings Type Of Seal: Rubber Ring And Metal Ring
Highlight:

Horizontal HDD Hole Opener

,

HDD Hole Opener High Manganese Steel

HDD Horizontal Drill Hole Openers For Rock Drilling Tools



Product Description



We also offer a complete range of TCI guided bits, which are designed for medium to hard rock formations and are widely used in utility applications where tricone bits are used. Designed and manufactured specifically for utility applications, these products allow you to achieve competitive performance without spending too much.



IADC
WOB(kN/mm)
RPM (r/min)
Suitable formation
417
0.35~0.90
140~70
Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
437
0.35~0.95
140~60
Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
517
0.35~1.05
120~50
Soft with low compressive strength and high drillability,such as shale,clay,sandstone and soft limestone,etc.
537
0.35~1.05
110~40
Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone
and dolomite with stringers,etc.
617
0.35~1.05
80~40
Medium hard with high compressive strength and thick&hard stringers,such as hard shale,limestone, sandstone and dolomite,etc.
637
0.70~1.20
70~40
Medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite, sandstone and chert.ect.
Note:The upper limits of WOB and RPM in above table should not be used simultaneously.
Product Advantage



1. Higher drilling speed, lighter load and smaller chip size make drilling easier to clean.

2. More durable cutting structure and bit integrity.

3. Higher quality leads to higher performance.

4. Allow deeper drilling without damaging seals while extending bearing life as much as possible.

5. Excellent bit body protection to withstand harsh horizontal drilling conditions.

6. Longer bearing life.

Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools 0

About Us



Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools 1Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools 2



The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.



We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.



With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!





Usage Scenarios



Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools 3


Production Process



Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools 4
Transport



Horizontal HDD Hole Opener High Manganese Steel For Rock Drilling Tools 5

F&Q


1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.



2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;



3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment



4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
