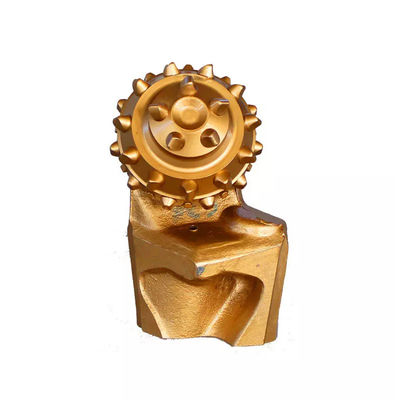

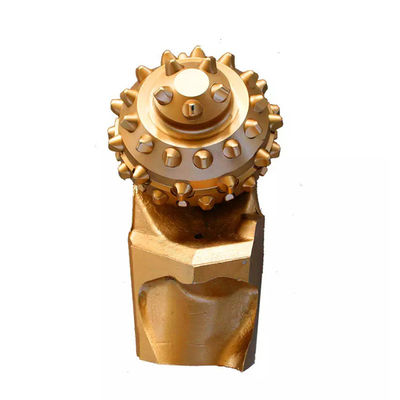

Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling

Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling
Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling

Large Image :  Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling

Product Details:
Place of Origin: Hebei, China
Brand Name: JianShi
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: bargain
Packaging Details: Can be customized + carton
Delivery Time: 15 days -30 days.
Supply Ability: The construction period of a HHD reamer is 5-7 days
Contact Now

Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling

Description
Product Name: HDD Pilot Bit Origin: Hebei, China
Brand Name: JS Type Of Machine: Drilling Tools
Material: High Manganese Steel Type Of Processing: Forging
Type Of Bearing: Journal Bearings And Seal Bearings Type Of Seal: Rubber Ring And Metal Ring
Highlight:

Single Cone HDD Pilot Bit

,

Base Rotary HDD Pilot Bit

,

HDD Tri Cone Rock Bit

Tricone Rock Bit Palm With Single Cone Milling Cutter For Base Rotary Drilling



Product Description



We have a wide selection of HDD bits, such as milled guided bits for loose and loose formations. These guide bits feature optimized tip protection, beveled hard metal, and cone inner rows to withstand the harsh drilling conditions often encountered in HDD applications.



IADC
WOB(kN/mm)
RPM (r/min)
Suitable formation
417
0.35~0.90
140~70
Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
437
0.35~0.95
140~60
Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
517
0.35~1.05
120~50
Soft with low compressive strength and high drillability,such as shale,clay,sandstone and soft limestone,etc.
537
0.35~1.05
110~40
Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone
and dolomite with stringers,etc.
617
0.35~1.05
80~40
Medium hard with high compressive strength and thick&hard stringers,such as hard shale,limestone, sandstone and dolomite,etc.
637
0.70~1.20
70~40
Medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite, sandstone and chert.ect.
Note:The upper limits of WOB and RPM in above table should not be used simultaneously.
Product Advantage



1. Higher quality leads to higher performance.

2. The achievable speed is higher and the bearing life is longer.

3. More durable cutting structure and integrity.

4. Higher carrying capacity in harsh drilling conditions.

5. Excellent bit body protection to withstand harsh horizontal drilling conditions.

6. Able to handle high-traffic applications.

7. Allow deeper drilling without damaging grease seals.

Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling 0

About Us



Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling 1Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling 2



The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.



We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.



With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!





Usage Scenarios



Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling 3


Production Process



Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling 4
Transport



Single Cone HDD Pilot Bit Tri Cone Rock Bit For Base Rotary Drilling 5

F&Q


1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.



2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;



3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment



4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
