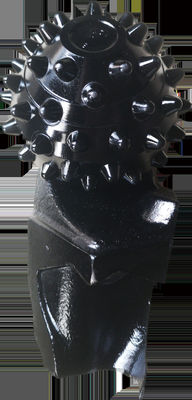

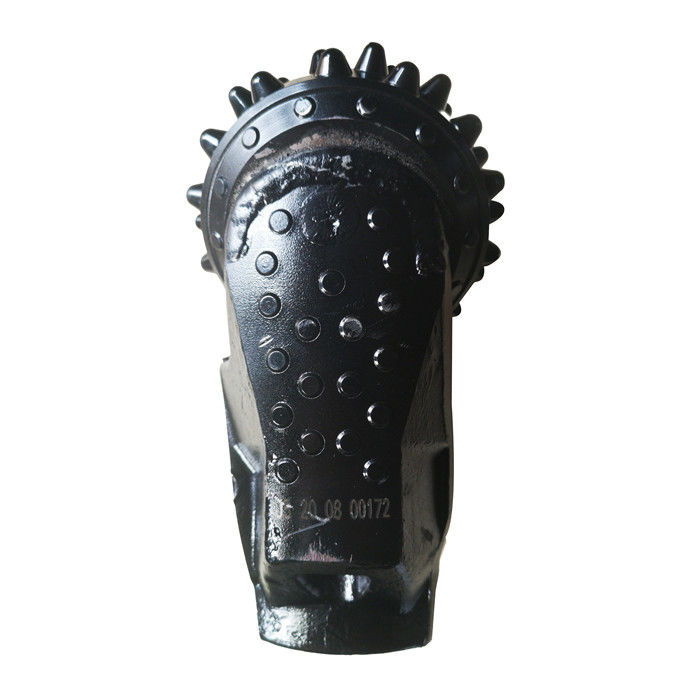

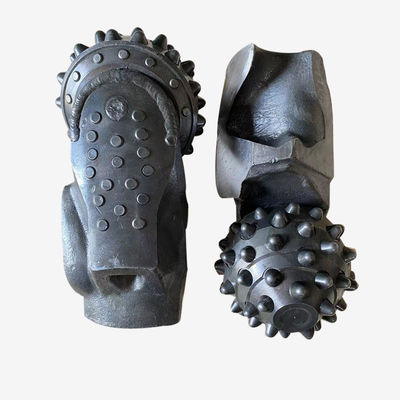

Piling Carbide Tci Tricone Drill Bits 8 1/2inch Dia 140mm

1,NAME :  roller cores , roller bits , single roller core bits ,etc

2,SIZE : 8 1/2inch tricone roller bit part  ( dia 140mm )

3,TYPE: JS1 and JS2  and two types .

4,JS1 and JS2 difference :The distribution of alloy teeth is different, the number is different, the application of the formation hardness is different, the more alloy teeth, the harder the applicable formation​ .

5,It is used in rotary drilling rig projects of 350 tons and above, such as bridge piles, foundation piles, etc. The core barrel with roller core bits is used for drilling in hard abrasive granite, quartzite, bluestone, limestone and dolomite.

6, roller bit parts details

1)20GrNiMo

2) cutter material : alloy teeth (The best carbide in the country)

3), IADCcode : IADC code 617/637

4),Conical ended shape tooth : shaped like a cone , this tooth shows good crushing resistance with a high rate of penetration , suitable for hard and hard – brittle formations

7, Arm protection structure

Gage structure: Carbide teeth set on the back of the wheel and claw

8,Bearing Structure

High precision roller bearing with two thrust faces. Ball locked cone. Thrust faces hardfaced with friction reducing alloy. Abrasion resistance and seizure resistance of the bearing are improved.

9,Seal and Lubrication

The bearing seal is adapting the high quality HNBR O-ring. The best seal compression and the radial seal structure can enhance the seal performance. The compensation system adopts the high quality bit grease and greatly increases the lubricating reliability.

10, Application

Applied to rotary drilling rigs of 350 tons and above, such as bridge piles, foundation piles, etc., for drilling in hard abrasive granite, quartzite, bluestone, limestone and dolomite.

11, Packing

Packing in fumigation-free wooden cases.
Wooden case size: 30*30*70cm
Number of teeth and PAWS: 5 tablets to a box
For large orders, we can make 50 pieces a box, or customized according to customer requirements.

12, Warranty:

Room temperature storage: 4 years

13,

Ix. Conventional data A set of reference data for the number of meters drilled by a roller cone:

For uniform hard rock 80Mpa above hardness, 50-150m
