Product Details:
|
| Product Name: | HDD Rock Reamer | Origin: | Hebei, China |
|---|---|---|---|
| Brand Name: | JS | Type: | Reamer |
| Type Of Machine: | Drilling Tools | Material: | Steel |
| Use: | Infrastructure Construction | Application: | Horizontal Directional Drilling |
| High Light: | Hard Disk HOB Hole Opener,24" HOB Hole Opener |
||

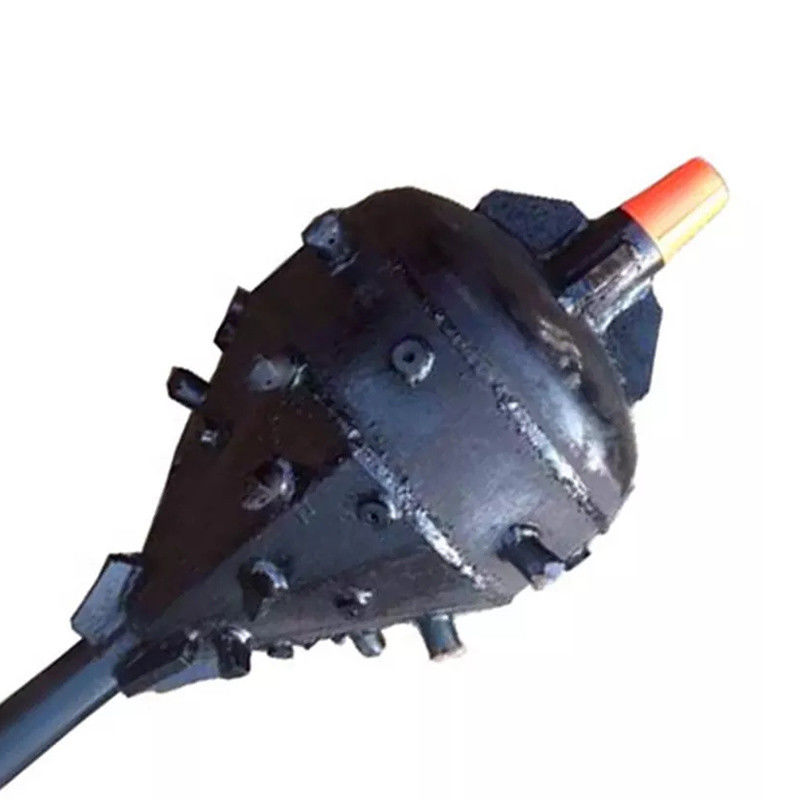

24 "Hard Disk Hob/Hole Opener/Rock Reamer
The fixed diameter openers are made of tough heat treated alloy steel for maximum strength. The knife arm is equipped with a detachable tool and hardfaced welded to the body. There are three options available: SM for soft to medium formation, MH for medium to hard formation, and XH for hard formation. The hole opener has three or six nozzles that can be replaced so that the jet can quickly clean the enlarged hole.
| Reamer Size | Cone size and # of Cones | Threads | |||
| Cone size | #of Cones | Cone size | # of Cones | ||
| 10“ | 6 1/2” | 3 | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) | ||
| 12“ | 8 1/2” | 3 | |||
| 16“ |
8 1/2”or 9 1/2” |
4 |
For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)
For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH |
||
1. Journal bearing. Hard face head bearing surface. The taper bearing is inlaid with antifriction alloy and then silver plated. The bearing capacity and bite resistance of bearings are greatly improved.
2, the O-ring is made of high-saturation nitrile rubber with higher wear resistance, which increases the sealing section. The sealing flange in the conical sealing area is precisely designed, which increases the reliability of sealing.
3. Bit bearing can be ball lock or ring lock. The bit with ring lock bearing can withstand higher bit weight and carry the ball
The lock bearing bit can be used for high-speed drilling.
4. The full rubber compensator can limit the pressure difference and prevent drilling fluid from entering the lubricating oil system, which provides a good lubrication guarantee for the bearing system.
The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.
We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.
With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!
1. Who are we?
We are headquartered in Hebei, China, and have been selling worldwide since 2019.
2. How can we guarantee the quality?
Pre-production samples are always used before mass production;
Always carry out final inspection before shipment;
3. What can you buy from us?
Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment
4. Why buy from us instead of other suppliers?
The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
