Product Details:
|
| Material: | 20GrNiMo And Tungsten Carbide | Bearing: | Rubber Sealed Bearing Type Tricone Bit |
|---|---|---|---|
| Product Process: | Forging And Heat Treatment Tricone Bit | Standard: | API And ISO |
| Warranty: | More Than 80 Hours | Type: | Bit |
| Material: | High Manganese Steel, Diamond | Application: | Coal Mining, Quarry Drilling, Drilling Tricone Bit |
| High Light: | API Tci Tricone Bit,Tci Tricone Bit 311MM |
||

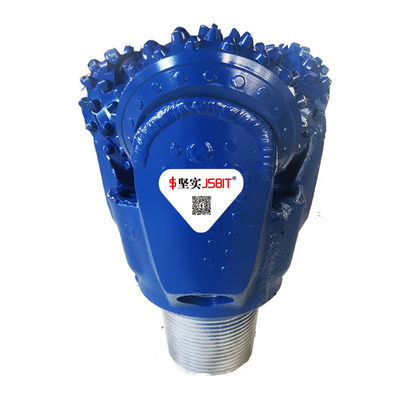

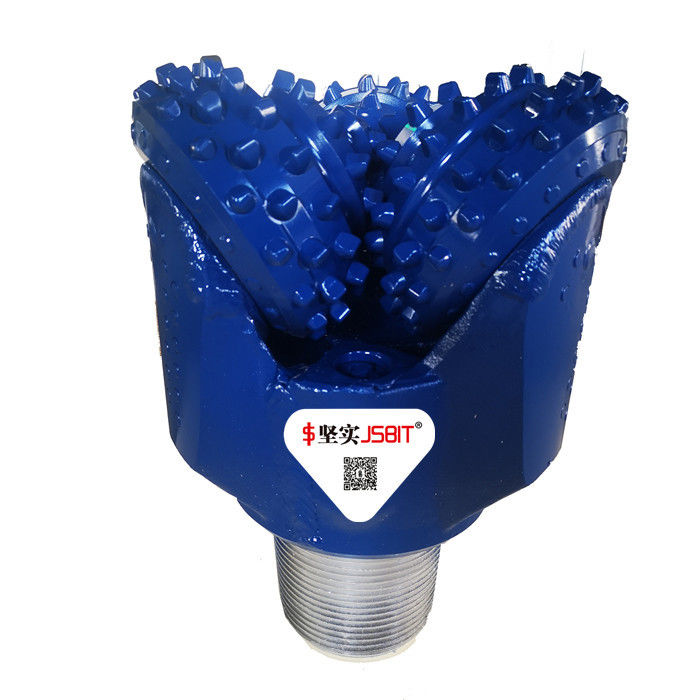

CHINA strong brand Factory wholesale 311MM iadc 537 tricone rock drill bit for oil/water well drilling
JSBIT tricone bits factory offers all kinds of tricone drill bits. Tricone bits are available in new and used tricone bits , steel tooth and tungsten carbide insert, in sizes from 37/8" to 36", for use in all formations, with any bearing: seal type / air type , tricone bits apply to oil gas geothermy mining water HDD and foundation industry.
Main features:

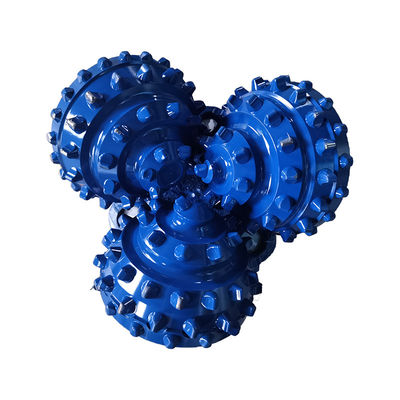

1. Cutting Structure of this type sealed and non-sealed tci tricone bits
Tungsten carbide insert tricone bit : tungsten carbide alloy steel
Steel tooth tricone bit : Enhancing the wear-resistance of cutting tooth by welding new type of wear resistant material on the tooth surface of steel tooth bit. Reinforcing the comprehensive mechanical properties of cutting tooth by using high quality tungsten carbide inserts of new formula and new techniques of insert bit.
2. Gauge Structure of this type tci tricone rock bits:
Gauge Structure
The multiple heel position with gauge trimmer on the heel, tungsten carbide and hardfacing on the shirttail, strengthened spear point will enhance the gauge protection.
1)Rubber sealed Bearing Structure
High precision journal bearing with two thrust faces. Ball locked cone. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
Seal and Lubrication
The bearing seal is adapting the high quality HNBR O-ring. The best seal compression and the radial seal structure can enhance the seal performance. The compensation system and the high quality bit grease can limit pressure differential, and greatly increase the lubricating reliability.
2)Metal Sealed Bearing Bit
Bearing Structure
High precision journal bearing with two thrust faces. Ball locked cone. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved, and suitable for high rotary speed.
Seal and Lubrication
The advanced metal seal package is composed by two metal seals and two elastic rubber energiners. The energizer and back-up ring will support the pushing force to make the two metal faces tightly contact. In the drilling, the metal seals are relevant moving, and the energizers are static. This will increase the bearing seal reliability and durability. The compensation system and the high quality bit grease can limit pressure differential, and greatly increase the lubricating reliability.
3) Air type bearing Bit
Air cooling roller bearing package.Balls lock the cone,which reduces the probability of cone-dropping to minimum.
Re-Run Carbide Insert Tricone Drill Bits
Re-run carbide insert bits are used bits that have been re-worked, cleaned, and often times painted. Re-runs offer significant cost savings over new carbide insert bits. Roschen offers a variety of re-run carbide bits in sizes ranging from 2 1/2" to 36". All re-runs are premium quality and available for use in soft, medium, and hard formations.
Contact a us for additional details about our complete line of re-run carbide insert tricone drill bit product offerings.
Re-Tip Steel Tooth Tricone Drill Bits
Re-tip steel tooth tricone bits are gently used bits that usually come from the oil fields. They are refurbished for use in non-oilfield rotary applications, such as water wells, HDD, and construction type drilling. These bits offer significant cost savings over new bits. Hole Products offers a wide range of premium, oil field quality re-tip steel tooth bits in sizes ranging from 2 1/2" to 36". Re-tip bits are available for use in soft, medium, and hard formations.
| IADC | Recommended parameters | Applicable strata | |
| WOB KN/mm | Rotating speed r/min | ||
| 116,117 | 0.35-0.8 | 150-80 | Extremely soft formations with high compressive strength and drillability, such as clay, mudstone, chalk |
| 126,127 | 0.35-0.9 | 150-70 | Soft formations with high compressive strength and drillability, such as mudstone, gypsum, salt rock, soft shale, soft limestone |
| 136,137 | 0.35-1.0 | 120-60 | Soft to medium-soft formations with high compressive strength and high drillability, such as medium-soft shale, anhydrite, medium-soft limestone, medium-soft sandstone and soft formations with hard interlayers |
| 216,217 | 0.4-1.0 | 100-60 | Soft to medium formations with compressive strength, such as soft shale, medium soft limestone, medium soft sandstone and soft formations with hard interlayers |
| 246,247 | 0.4-1.0 | 80-50 | Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite |
| 417,437,447 | 0.35-0.9 | 150-70 | Very soft formations with high compressive strength and drillability, such as clay, mudstone, chalk, gypsum, salt rock, soft shale, soft limestone |
| 517,527 | 0.35-1.0 | 140-60 | Soft formations with high compressive strength, such as mudstone, gypsum, salt rock, soft shale, soft limestone |
| 537,547 | 0.45-1.0 | 120-50 | Soft to medium formations with compressive strength, such as medium-soft shale, medium-soft limestone, medium-soft sandstone and medium formations with effective hard abrasive interlayers |
| 617,627 | 0.45-1.1 | 90-50 | Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite |
| 637 | 0.5-1.2 | 80-40 | Hard formations with high compressive strength, such as sandstone, limestone, dolomite and anhydrite, marble |
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
fumigation free-wooden box and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests
For more information, please contact:
Email: cocoyu@jsbit.com.cn
Mobile / WhatsApp / Linkedin / Facebook / Wechat / NO.
+86 13373078300
Website:
Keywords
Tci bit
Trione rock drill bit
Tricone Roller Cone Drill Bits
Tricone Rotary Drill Bits
Tricone Bits,
Tricone Bits Suppliers
Tricone Bits Manufacturers
Related searches for tricone bits tricone drill bits for sale
tricone bit for well drilling
tricone bit weight
used tricone bits
tricone bits for sale
tci tricone bit
hughes tricone bits
tricone drill bit
Tricone Bits Suppliers
Tricone Bits Manufacturers
China Tricone Bits Suppliers
China Tricone Bits Manufacturers
Tricone Bits Suppliers in China
Tricone Bits Manufacturers in China
Tricone Bits
Tricone Bits Suppliers
| Table of classification of formation hardness and bit selection | |||||
|
Roller cone bit IADC code |
IADC code of diamond bit | Formation description | Rock type | Compressive strength(Mpa) | ROP(m/h) |
| 111/124 | M/S112~M/S223 | Very soft:sticky soft formation with low compressive strength. |
Clay Siltstone sandstone |
<25 |
>20 |
| 116/137 | M/S222~M/S323 | Soft:soft formation with low compressive strength and high drillability. |
Clay rock Marl Lignite sandstone |
25~50 |
10~20 |
|
417/527 |
M/S323~M/S433 |
Medium soft:soft to medium formation with low compressive strength and steak. |
Clay rock Marl Lignite Sandstone Siltstone Anhydrite Tuff |
50~75 |
5~15 |
| 517/537 | M322~M443 | Medium:medium to hard formation with high compressive strength and thin abrasive streak. |
Mudstone Dark rock shale |
75~100 | 2~6 |
| 537/617 | M422~M444 |
Medium hard:hard and dense formation with high compressive strength and medium abrasiveness. |
Dark rock Hard shale Anhydrite Sandstone Dolomite |
100~200 | 1.5~3 |
| IADC CODE SELECTION | |||
| IADC | WOB | RPM | Application |
| (KN/mm) | (r/min) | ||
| 111/114/115 | 0.3-0.75 | 200-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 116/117 | 0.35-0.8 | 150-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 121 | 0.3-0.85 | 200-80 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 124/125 | 180-60 | ||
| 211/241 | 0.3-0.95 | 180-80 | medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds. |
| 216/217 | 0.4-1.0 | 100-60 | |
| 321 | 0.4-1.0 | 150-70 | medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble |
| 324 | 0.4-1.0 | 120-50 | |
| 437/447/435 | 0.35-0.9 | 240-70 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone |
| 517/527/515 | 0.35-1.0 | 220-60 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 537/547/535 | 0.45-1.0 | 220-50 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 617/615 | 0.45-1.1 | 200-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
|
Note: Above limits of WOB and RRPM should not be used simultaneously |
|||
